LLFA TAPE

Application

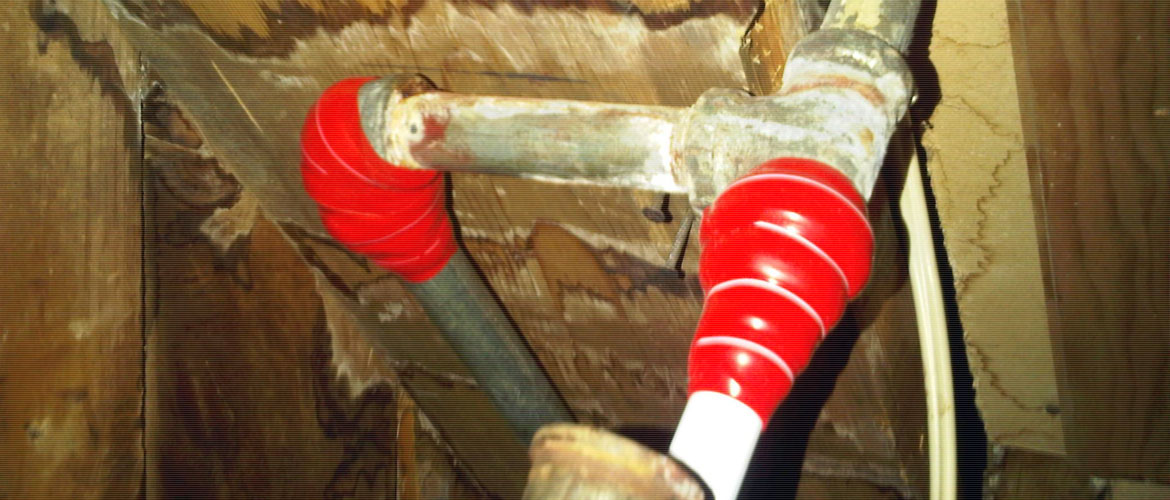

LLFA TAPE (said, “alpha”) can be applied on almost any surface material, from galvanized and cast iron to copper and all types of plastics or rubber. It contains on adhesive, so pulling the tape as tight as possible on all layers allows it to seal by compression (the harder you pull the greater the compression). Fusing into a mass of silicone, LLFA forms a heavy duty bond on the leak or connection that can be used as an emergency or long-term repair.

Temperature Range : -90oC to 260oC / -130oF to 500oF

Tear Resistance : ~ 125 ibf/in

Elongation : >325%

UV Resistance : Highly UV resistant.

Adhesion (Fusion) : Standard requirement: “Tape shall not unwind more than 1.0 inch after 3 minutes with an attached load of 600g.” Result: LLFA TAPE < 1 inch

Thermal Stability : -90oC to 260oC / -130oF to 500oF continuous

Tensile Strength : ~ 1200 PSI throughout temperature range.

Acids, Alkaline and Chlorine : No negative effect from brief exposure to acids, alkaline or chlorine and can withstand subersion up to 3 days.

Self-Extingushing
     - UL standard 94 rating V-O. Tested to IEEE383 and iEEE1202 for flammability, self-extingushes and will not propagate a flame

Standard Compliance
     - ASTM D2240, A-A-59163, ASTM D-149, MIL-I-46852, ASTM D2148, ASTM D3767 (LLFA TAPE specifications meet other international standards not included in this list.)
